What's Advantage of Hand Held Electrical Helical Pile Driver Compare to Crawler Pile Drivers?

Handheld electrical helical pile drivers offer distinct advantages over crawler-mounted pile drivers in specific scenarios, particularly for small-to-medium projects with space, accessibility, or environmental constraints. Here's a breakdown of their key benefits:

Unmatched Mobility & Accessibility

· Lightweight & Portable: Weigh 20-50 kg (vs. crawlers at 1,000+ kg), carried by 1–2 people.

· Tight Spaces: Fit through gates (≤1m wide), backyards, basements, or dense urban sites.

· No Heavy Transport: Eliminates need for trailers/low-loaders, reducing costs and logistics.

· Indoor Use: Operate in enclosed spaces (e.g., basements) without exhaust fumes.

Lower Costs & Operational Efficiency

· Purchase/Rental Cost: 70-90% cheaper than crawlers.

· Fuel Savings: Electric power costs less than diesel (crawlers use 5–15 L/hour).

· Minimal Site Prep: No ground stabilization or wide access paths needed.

· Small Crew: 1–2 operators suffice (vs. 3+ for crawlers).

Environmental & Social Benefits

· Zero Emissions: Electric operation ideal for indoor/eco-sensitive sites.

· Low Noise: <75 dB (vs. crawlers >100 dB), suitable for residential areas or noise-restricted zones.

· Minimal Site Damage: No track marks on lawns, pavements, or delicate terrain.

Ease of Use & Versatility

· Quick Setup: Operational in minutes; no assembly required.

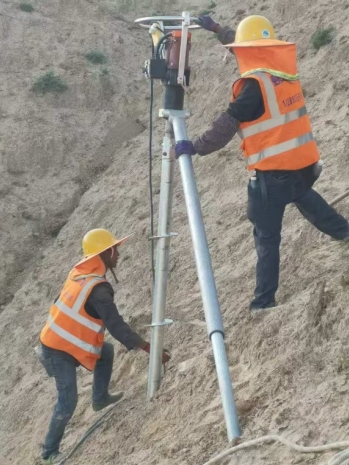

· Shallow Angles: Easily install piles at 10°–20° inclinations for slope stabilization.

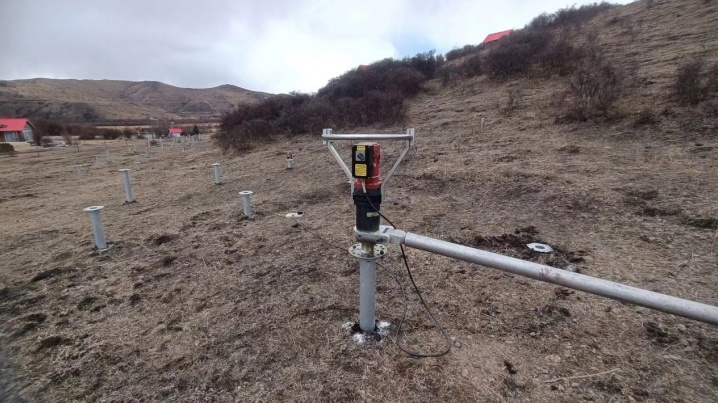

· Adaptability: Ideal for retrofits, decks, solar mounts, signs, and light foundations.

Key Limitations

· Lower Torque: Suited for small piles (typically ≤114mm/4.5" diameter) in soft-to-medium soils.

· Depth Restrictions: Max depth ~10m (vs. crawlers: 30m+).

· Labor-Intensive: Not efficient for high-volume projects (>50 piles).

When to Choose Handheld Over Crawler:

Bottom Line:

Handheld electrical pile drivers excel where accessibility, cost, and environmental factors outweigh raw power needs. They democratize helical pile installation for smaller contractors and specialized projects but aren’t replacements for crawlers in heavy-duty applications. Choose based on your project’s soil conditions, pile specs, and site constraints!
