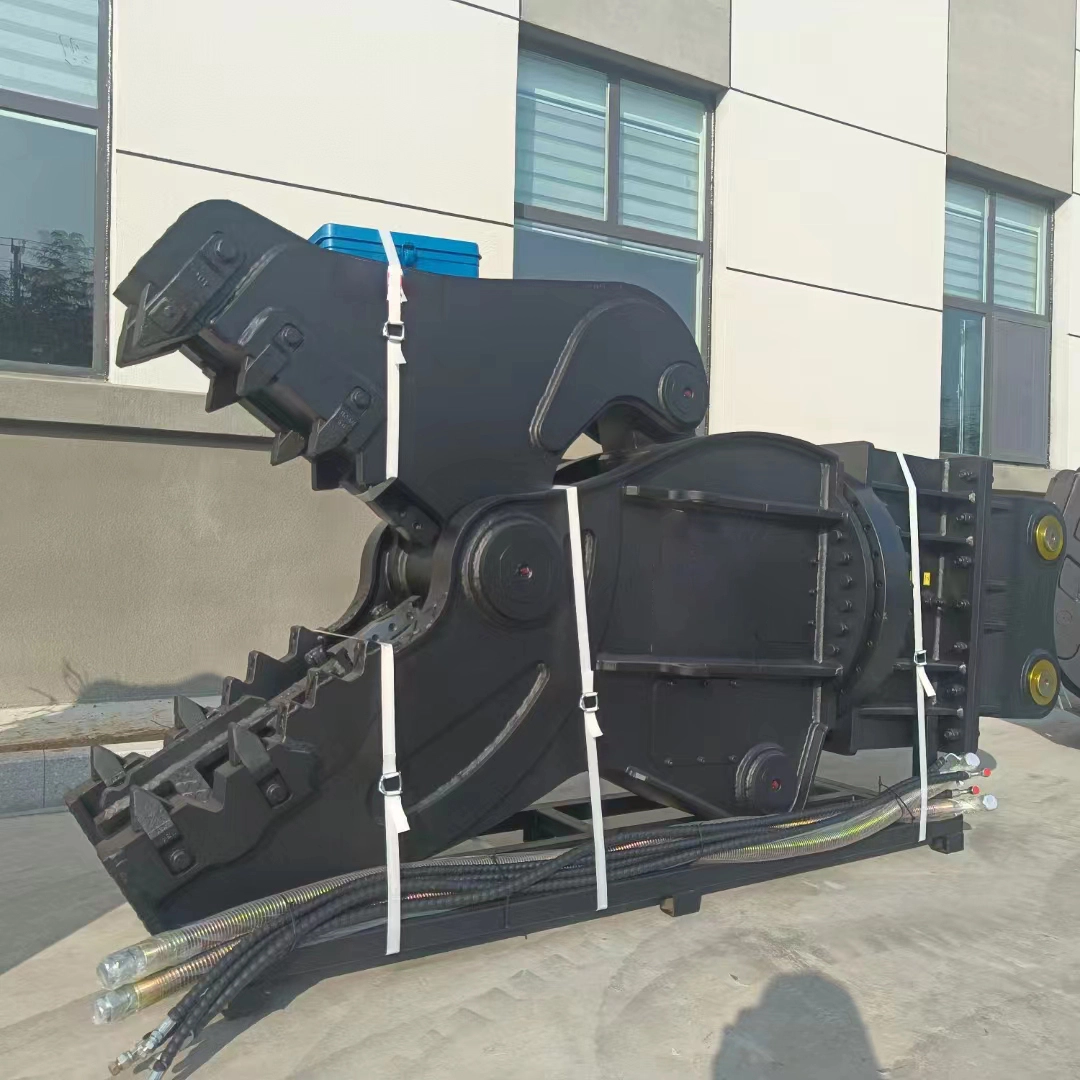

This series of demolition pulverizer also called concrete/rock crusher, it is the perfect attachment for primary and secondary demolition. With double large cylinders, exceptional closing force, and fast cycle times, SC Rotating pulverizer offer exceptional strength and excellent productivity in even the toughest work environments. Innovative interchangeable teeth type is available.
Continuous, precision 360° rotation in both directions.
Speed boosting system provides faster cycle times.
Two large cylinders assure its crushing power
Wider jaw can process the thickest concrete
Interchangeable teeth type is optional
| Item/Model | Unit | SC01H | SC02H | SC04H | SC06H | SC08H | SC10H | SC15H |
| Suitable Excavator | ton | 3-4 | 4-5 | 6-8 | 12-18 | 20-30 | 30-40 | 40+ |
| Weight | kg | 280 | 380 | 720 | 1420 | 2280 | 2780 | 3500 |
| Driving Pressure | bar | 24 | 24 | 27 | 300 | 320 | 320 | 350 |
| Driving Flow | L/min | 40-60 | 60-80 | 80-150 | 180-250 | 230-280 | 260-350 | 300-400 |

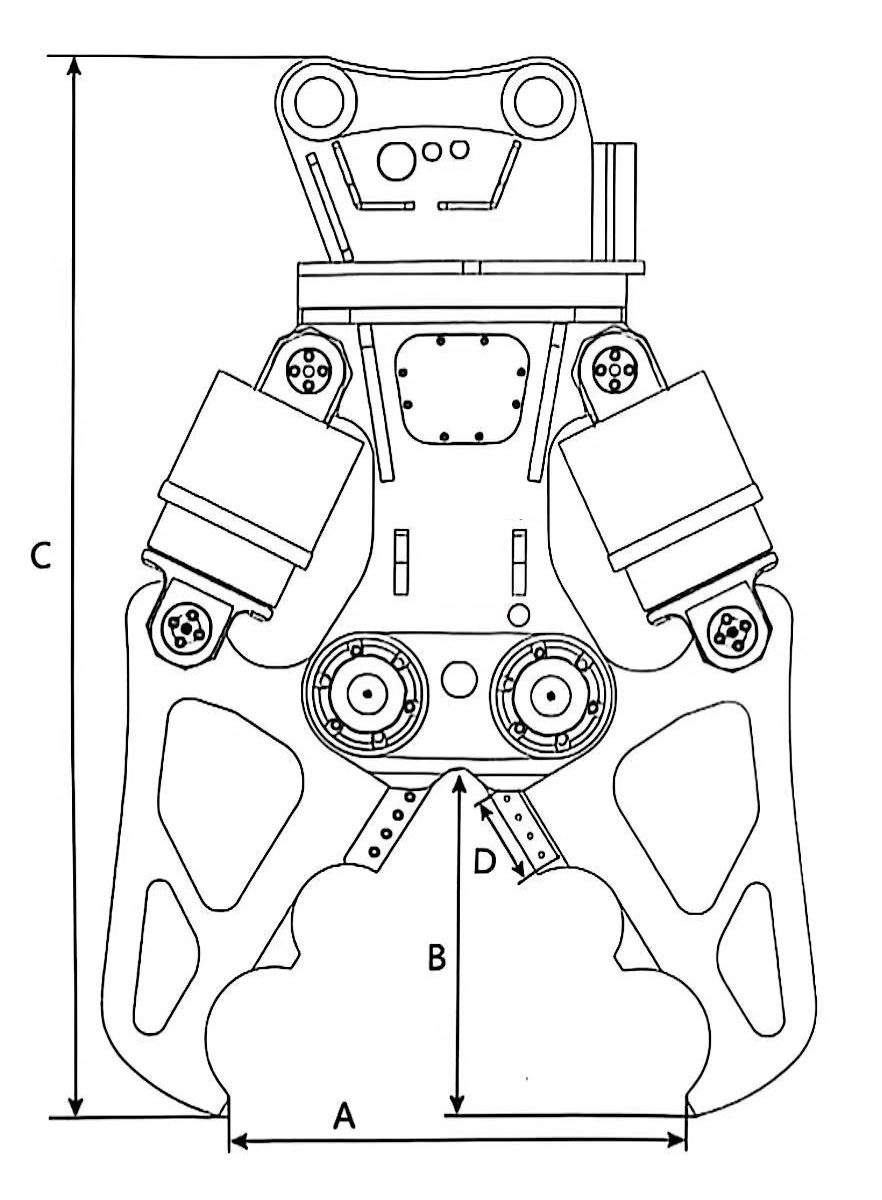

| Opening A | mm | 360 | 500 | 630 | 800 | 1100 | 1550 | 1850 |
| Cutting Depth B | mm | 240 | 340 | 420 | 540 | 700 | 980 | 1200 |
| Overall Length C | mm | 970 | 1180 | 1720 | 2070 | 2370 | 2780 | 3250 |
| Blade Length D1/D2 | mm | 120 | 120 | 160 | 200 | 200 | 240 | 300 |
| Central Shearing Force | ton | 40 | 53 | 68 | 112 | 161 | 211 | 312 |
| Front Shearing Force | ton | 24 | 35 | 43 | 72 | 100 | 150 | 200 |
| Open Cycle Time | sec | 1.8 | 2.0 | 2.1 | 2.4 | 2.5 | 2.8 | 3.0 |
| Close Cycle Time | sec | 3.6 | 3.8 | 3.8 | 4.1 | 4.3 | 4.5 | 4.8 |
