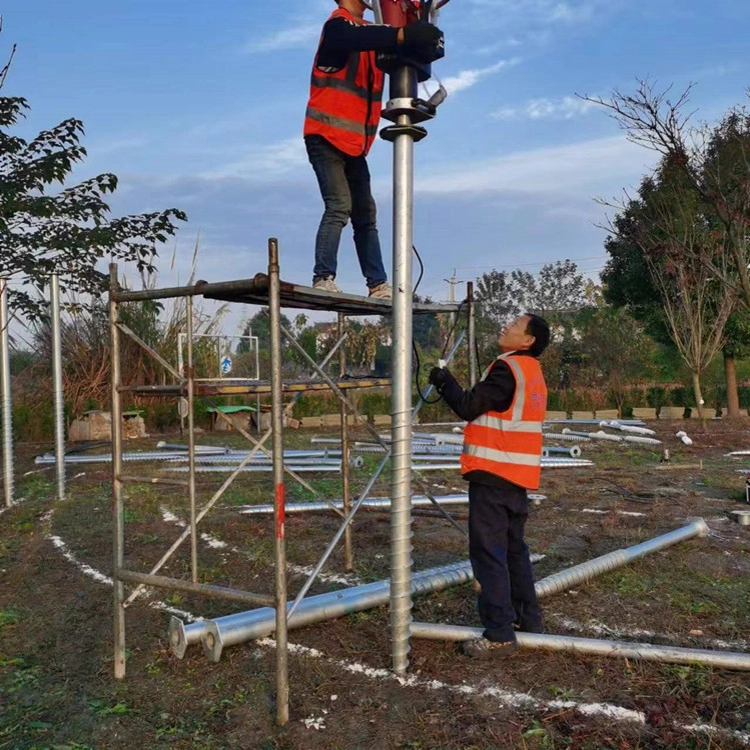

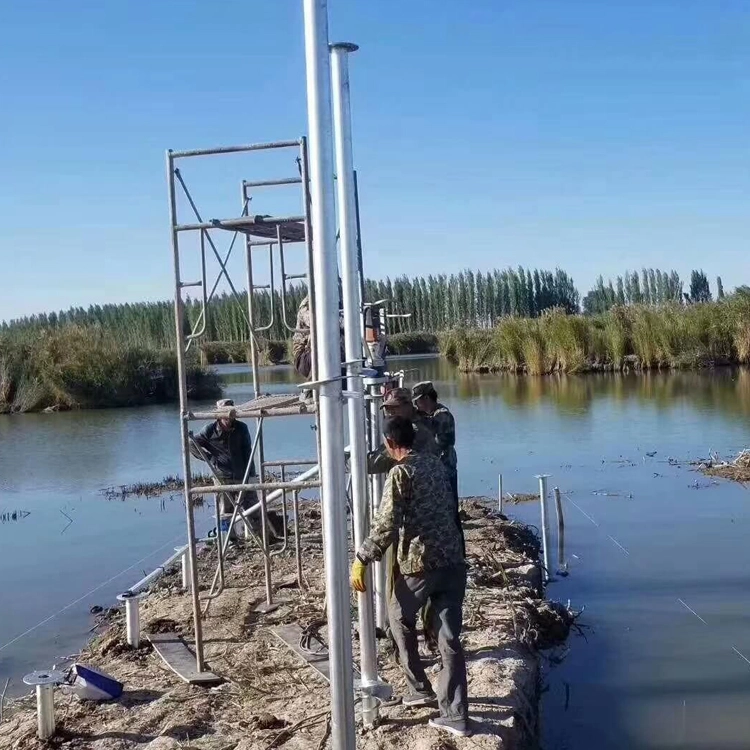

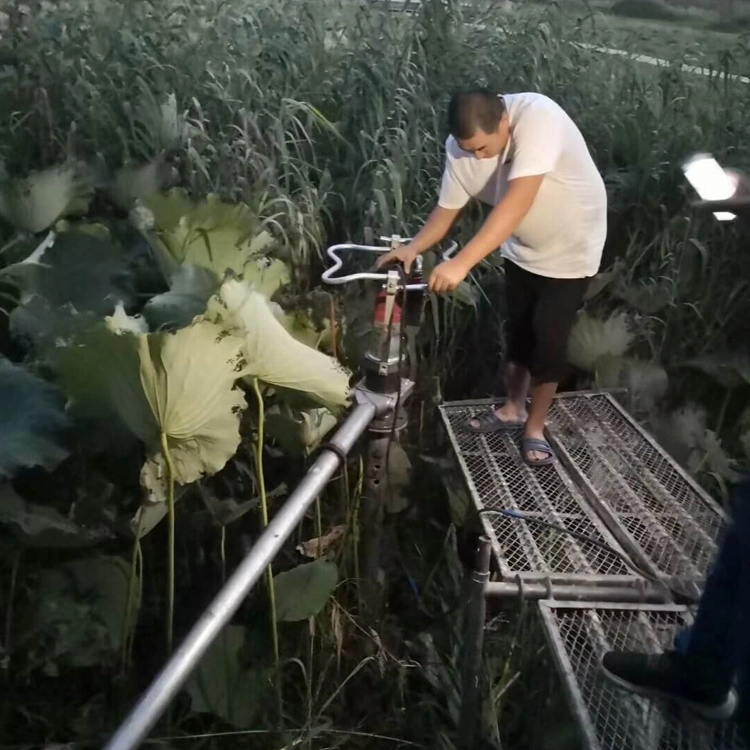

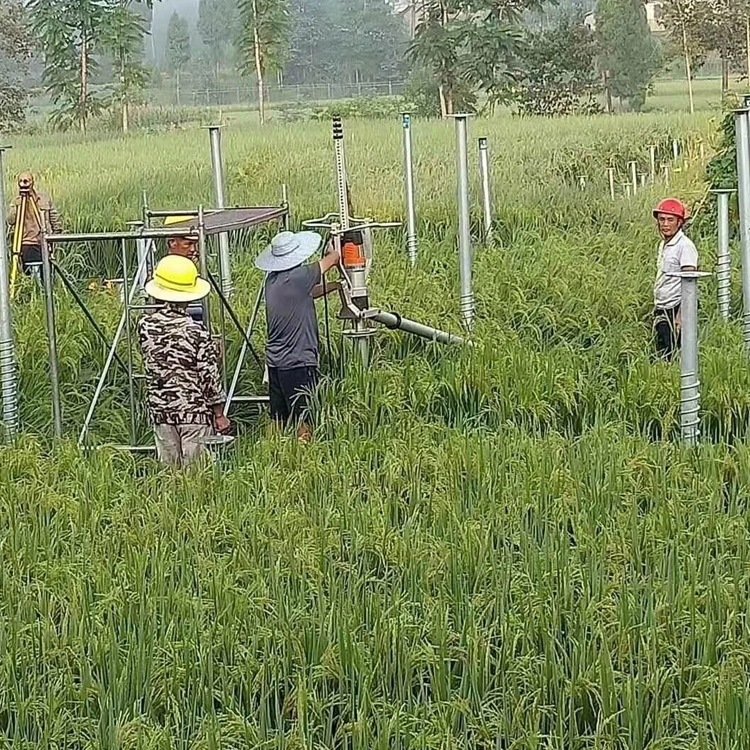

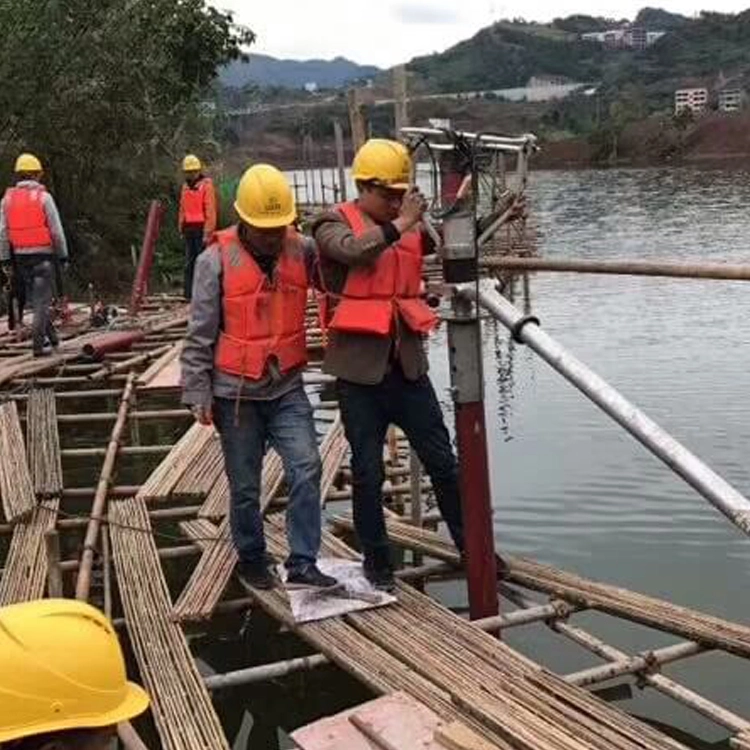

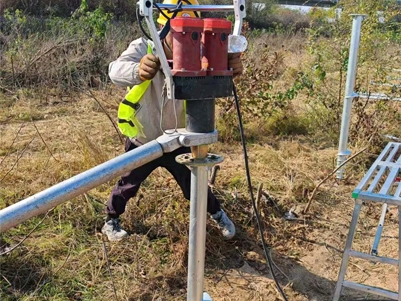

Electrical hand pile driver is a light tool for piles installation, with our E30 and E50 pile drivers, you can quickly and efficiently install professional foundation solutions manually. Max screw piles up to 89 mm and lengths up to 2000 mm can be installed using this machine easily. We supply virous of adaptors to fit for different shape of piles.Warranty of core components is 1 years.

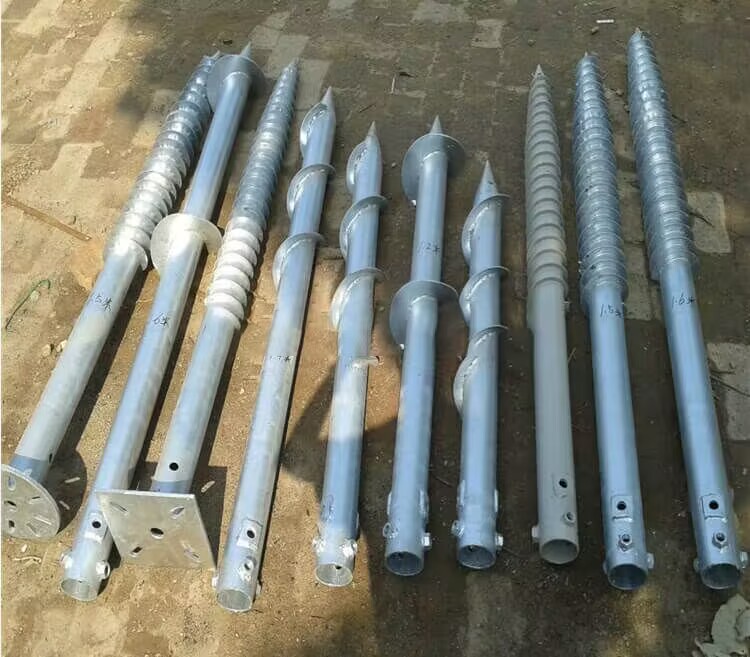

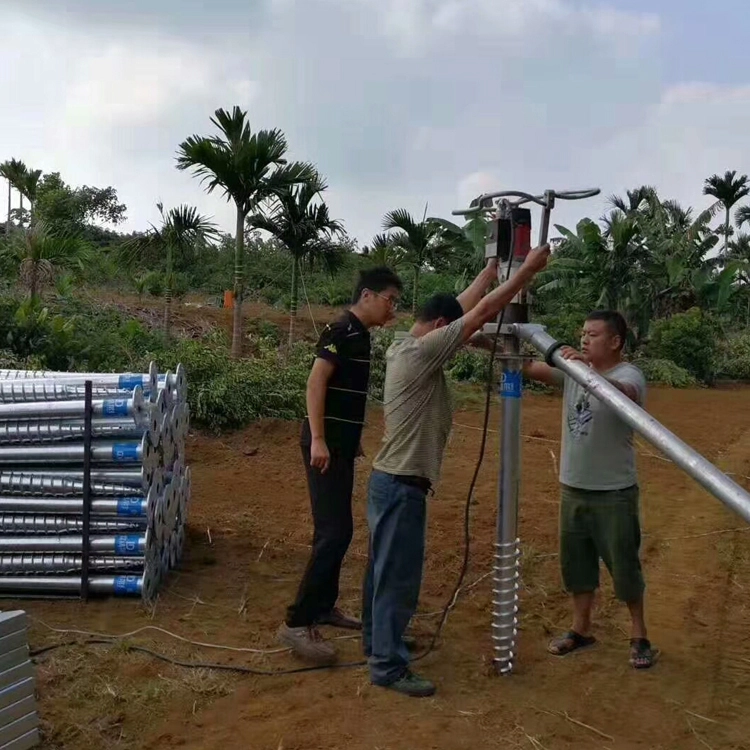

Excellent for screw type piles into the ground.
We supply all kinds of adaptors suitable for all the pile shape.
Both two pile drivers have 6000-10500nm torque with high speed motors.

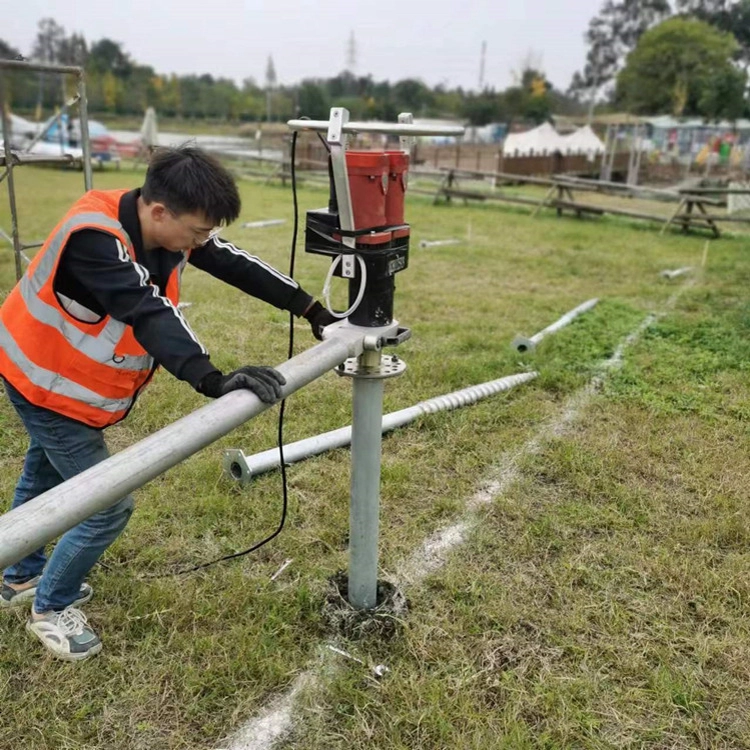

Supplied ready to work with a bracket arm to suit bush, pile disc.
Would certainly remove back-breaking work and enable you to put in piles much quicker with better efficiency.

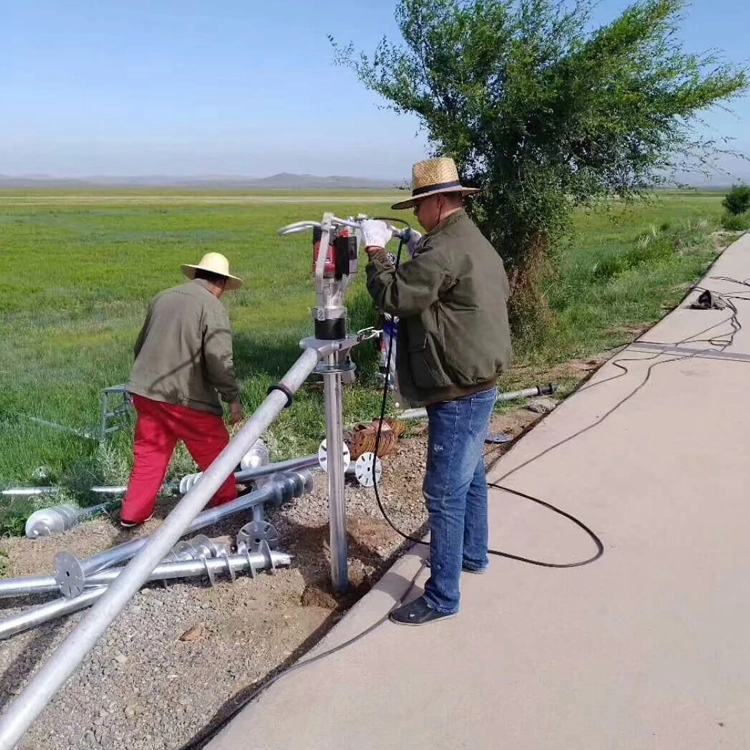

They’re fantastic for farmers, steel erectors, construction and anywhere that requires piles.

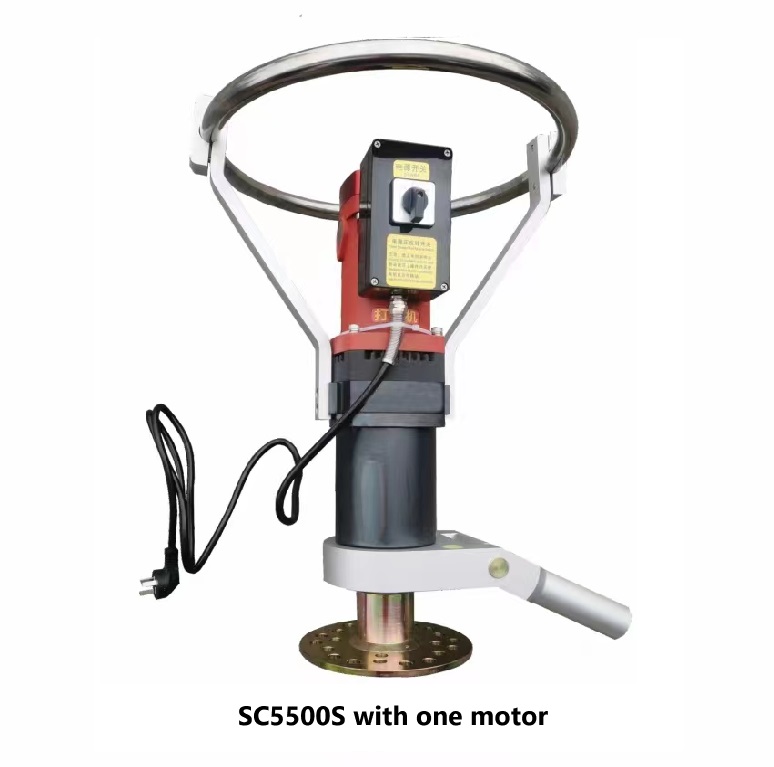

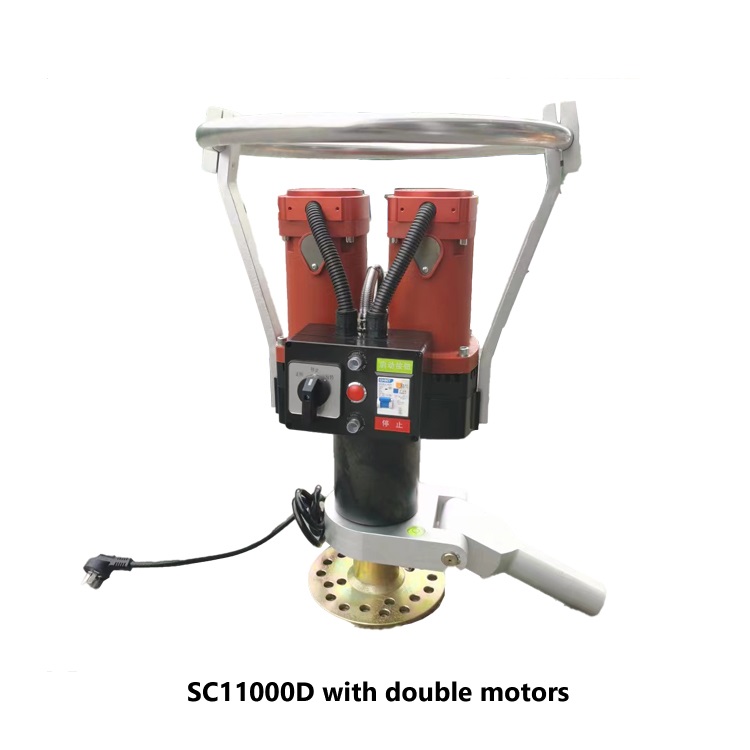

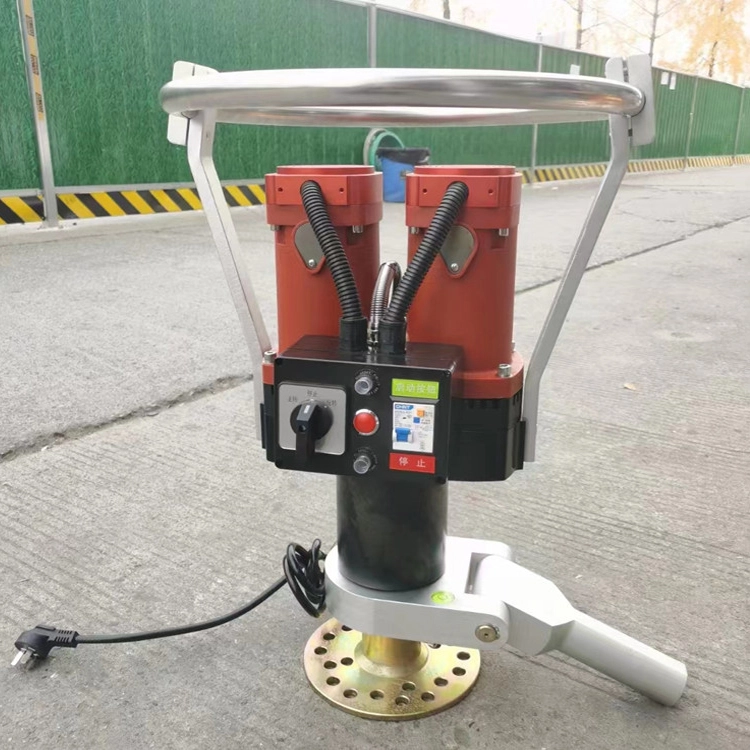

| Model | SC5500S | SC11000D |
| Motor QTY. | one motor | two motors |
| Max screw pile size | 114mm X 5m | 140mm X 10m |
| Max torque | 6000-10500nm | 6000-10500nm |
| No-load high speed | 9.5 R/m | 20 R/m |
| Voltage | 220V(50-60Hz) | 220V(50-60Hz) |
| Max power | 5500w | 11000w |
| Electric current | ＜32A | ＞32A |
| Motor dimensions(L * W * H) | 450*450*630mm | 650*540*630mm |
| Weight with bracket | 48kgs | 56kgs |

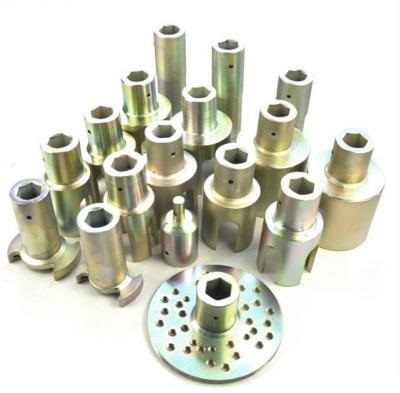

We supply virous adaptors for all shapes of piles and custom excavator pile driver attachment
