Concrete Pulverizer For Mini Excavator

Name: Concrete Pulverizer For Mini Excavator
Brand: YANTAI SC EQUIPMENT CO.,LTD.

This demolition pulverizer also called hydraulic crusher, concrete crusher. It's suitable for the primary demolition phases equipped with cylinder cylinder. Designed for small hydraulic machines, skid loaders, mini excavators, it is popular in indoor demolition works due to its light and compact structure. It make the disposal and recycling of concrete easier by separating the re-bar from the concrete.

Inquiry

Features Specification Images Video

Features of Concrete Pulverizer For Mini Excavator

One-cylinder system for easy operation
Continuous, precision 360° rotation in both directions.
Speed valve provides faster cycle times.
Lightweight and compact design
Wider jaw can process the thickest concrete
increase power performance by 25%

Specification of Concrete Pulverizer For Mini Excavator

Demolition Pulverizer For Mini Excavator

Model		SC10	SC17	SC25	SC30	SC50	SC72	SC102
Suitable excavator weight	Ton	0.8-1.5	1.5-2.5	2.5-3.5	3.0-5	5-8	7-10	10-14
Weight	kg	130	206	280	345	500	780	980

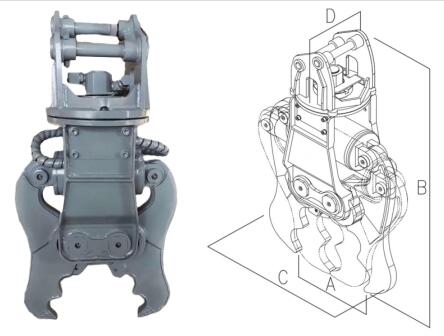

A	mm	280	340	280	430	500	650	750
B	mm	1000	1120	1210	1340	1450	1430	1650
C	mm	530	650	710	770	890	1020	1150
D	mm	320	320	350	370	480	660	760
Crushing force	ton	19.2	24.4	29.3	34.5	46.5	70	85
pressure	kg/m³	170	210	210	210	235	250	260

AJCE mini crushers are designed and optimized for mini excavators. We offer 5 different models for excavators from 0,8 to 9,0 ton. Special features: Light and robust structure - Massive cylinder and piston for more cutting power - 360° hydraulic rotation - Speed valve - Replacable cutter knives.
