Where I can purchase a handheld ground screw driver?

May 07 , 2025

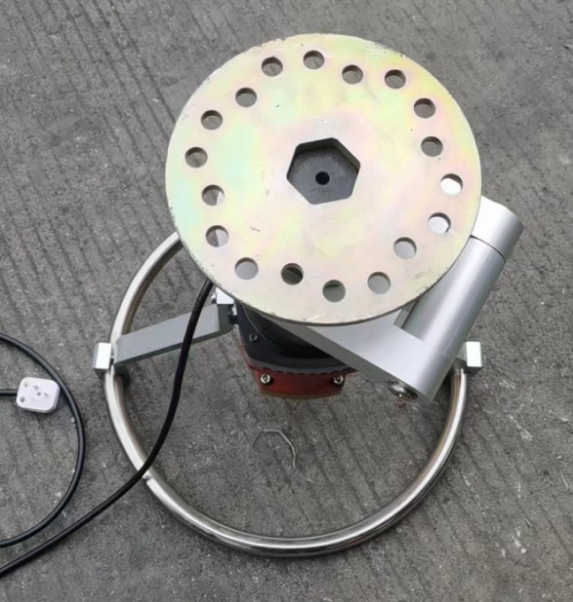

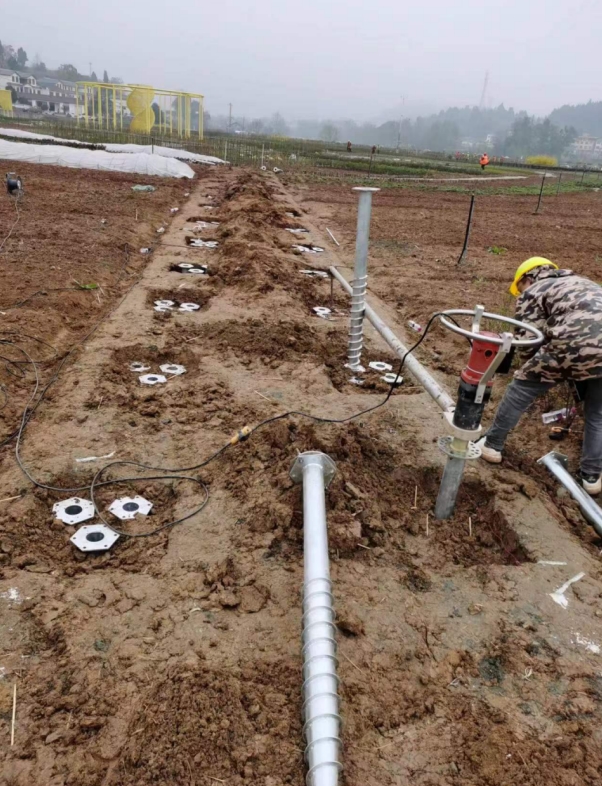

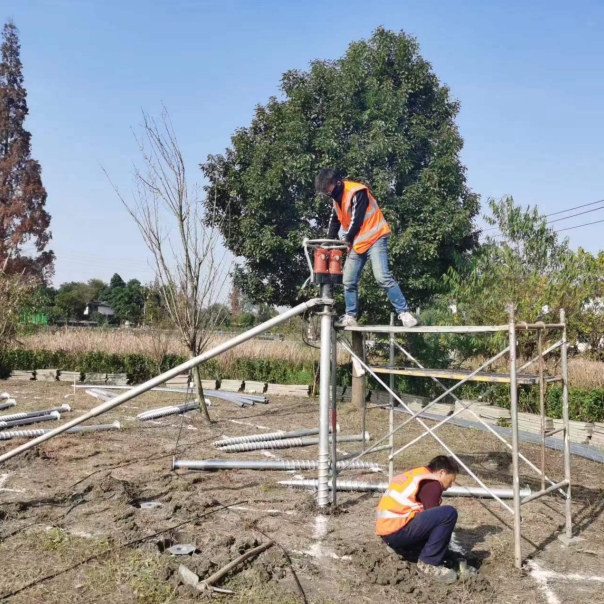

The SC5500 and SC11000 electric handheld ground screw driver have an output torque of 5,500-10,500 Nm, 5.5 kW and 11 kW respectively, making them the most powerful on the market. With this machine, screw foundations with a diameter of 140 mm (fixed and telescopic) can be driven into solid soil, with a maximum depth of 10 meters.




Both two types have high-speed motors, and no rated current and power, the power and current increase with the increase of load. At the beginning of operating, the no-load will reach 3000W, and the deeper the ground is, the greater the current will be.




When the motor is working, the motor speed will drop a little when it encounters a hard soil layer, and the torque will continue to increase while the speed drops. The electric drill has a thermal protection function, and it will automatically power off for protection if the current is too high. The rotation direction of the machine can be set to easily remove the installed ground piles.




Our piling adaptor covers most pile connection sizes. If your piles are not suitable, you can drill holes directly on the piling flange.




Want to know more possibilities? Please contact us.
