Demolition Robot Attachments—The Key Tools Enabling“Steel Warriors”to Perform Multiple Functions

With their compact bodies, remote-control capabilities, and robust hydraulic systems, demolition robots can replace human personnel in high-risk environments characterized by toxic substances, flammability/explosivity, structural collapse hazards, and high temperatures or radiation. Their true versatility as "all-rounders" stems from their diverse range of rapidly interchangeable work attachments. Demolition robots typically accommodate the following mainstream attachments, enabling a comprehensive suite of functions including breaking, shearing, cutting, gripping, and clearing.

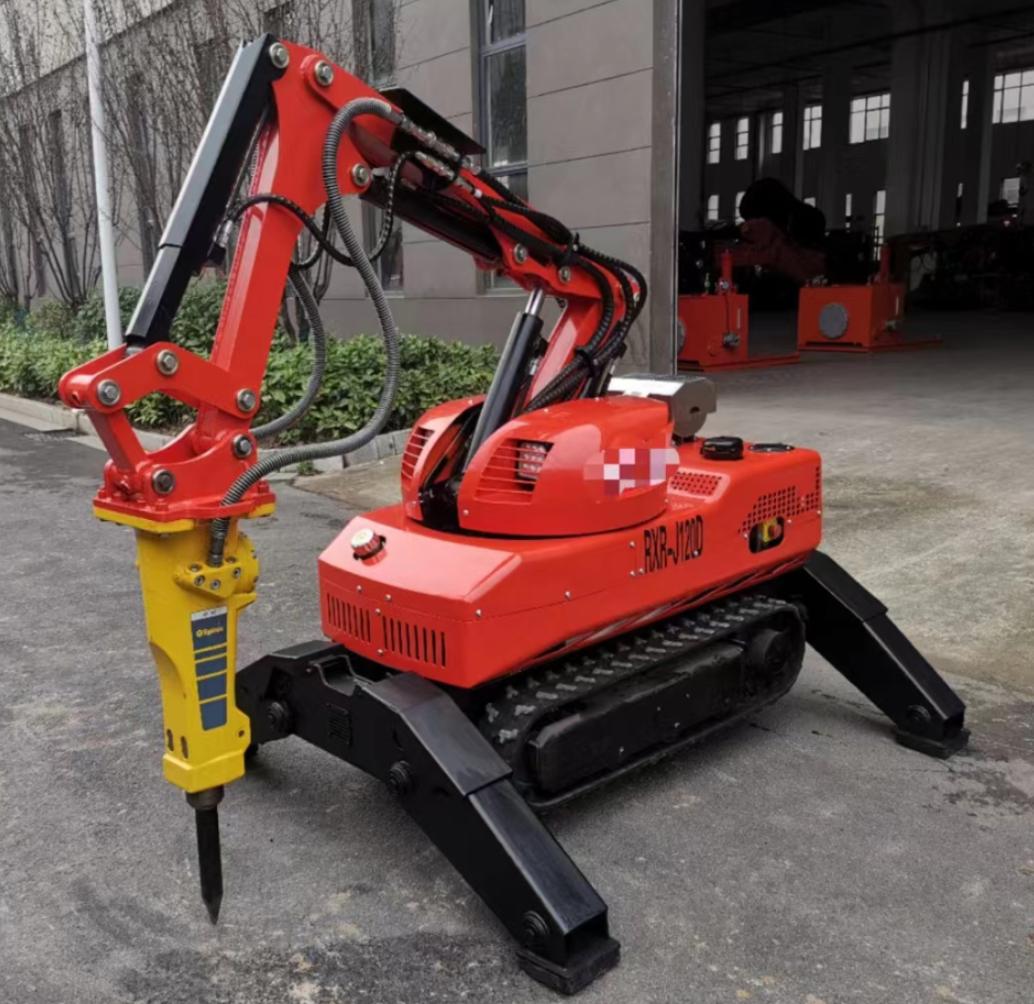

I. Hydraulic Breaker

Functional Features:

Utilizes high-frequency hydraulic impact to break apart hard materials such as concrete, rock, and asphalt; it is the most frequently used attachment in demolition operations. The hydraulic system operates at pressures reaching 18–24 MPa, and when paired with small to medium-sized hydraulic breakers, it delivers powerful impact energy.

Applicable Scenarios:

• Demolition and breaking of concrete walls and floor slabs in buildings

• Breaking and trenching of road surfaces and bridge decks

• In metallurgical applications: breaking kiln crusts in rotary kilns, removing refractory linings, and deslagging furnaces

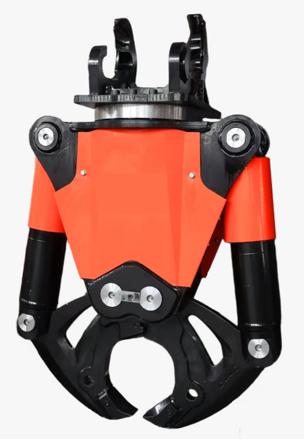

II. Hydraulic Shear / Concrete Crusher

Functional Features:

Employs powerful jaws to perform static shearing on reinforced concrete or metal structures. Compared to hydraulic breakers, these tools generate less noise, vibration, and dust, while producing clean, precise cuts—making them ideal for environments where minimizing impact on surrounding structures is critical. These tools are typically categorized into: Concrete Crushers (which crush the concrete while shearing through the internal rebar) and Steel/Metal Shears (specifically designed for cutting I-beams, steel pipes, and scrap metal).

Applicable Scenarios:

• Selective demolition of beams and columns in frame structures

• Shearing and dismantling of scrap steel structures, pipelines, and storage tanks

• Interior renovation projects within buildings where sensitivity to noise and vibration is a concern

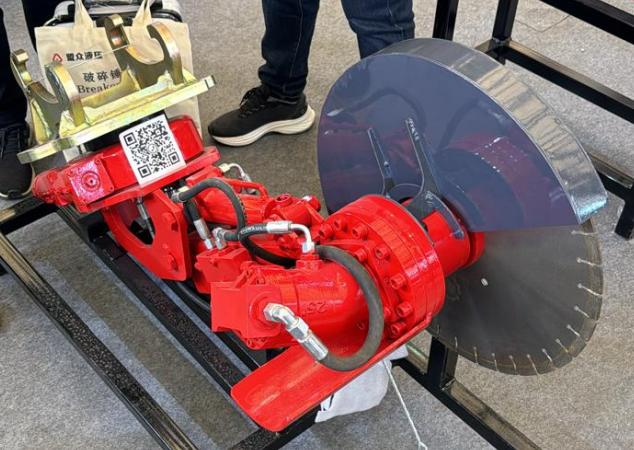

III. Hydraulic Disc Saw

Functional Features:

Utilizes a rotating circular saw blade to perform linear cuts on concrete, brick walls, and rock. It produces smooth, clean cuts, facilitating precise trenching or localized section removal while avoiding the excessive structural damage often associated with impact-based breaking methods. Applicable Scenarios:

• Wall opening and floor trenching

• Underground excavation of tunnel cross-passages and rock face trimming

IV. Hydraulic Clamshell Bucket / Grapple / Excavation Bucket

Key Features:

• Clamshell Bucket / Grapple: Used for gripping and transporting timber, bricks, scrap metal, and loose debris resulting from demolition; can also be utilized for clearing rubble and miscellaneous debris.

• Excavation Bucket: Suitable for small-scale earthworks or material loading operations.

When paired with the robot's multi-degree-of-freedom robotic arm, these attachments enable the efficient collection and loading of post-demolition materials, thereby enhancing the overall continuity of operations.

Applicable Scenarios:

• Rubble clearance and sorting at earthquake or structural collapse sites

• Centralized transfer and removal of discarded construction materials at demolition sites

• Slag removal and cleanup in tunnels and underground spaces

V. Other Optional Attachments

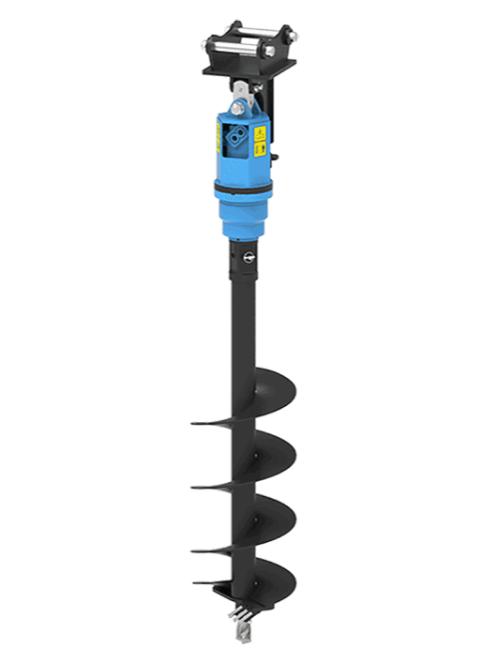

For specific operational conditions, additional attachments—such as hydraulic cutters/spreaders (rescue tools) and hydraulic drills—are available as options. These tools further expand the robot's scope of application in firefighting and emergency rescue, hazardous chemical handling, and industrial maintenance.
