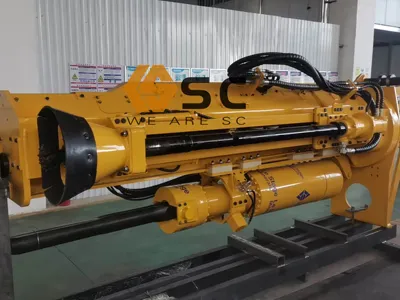

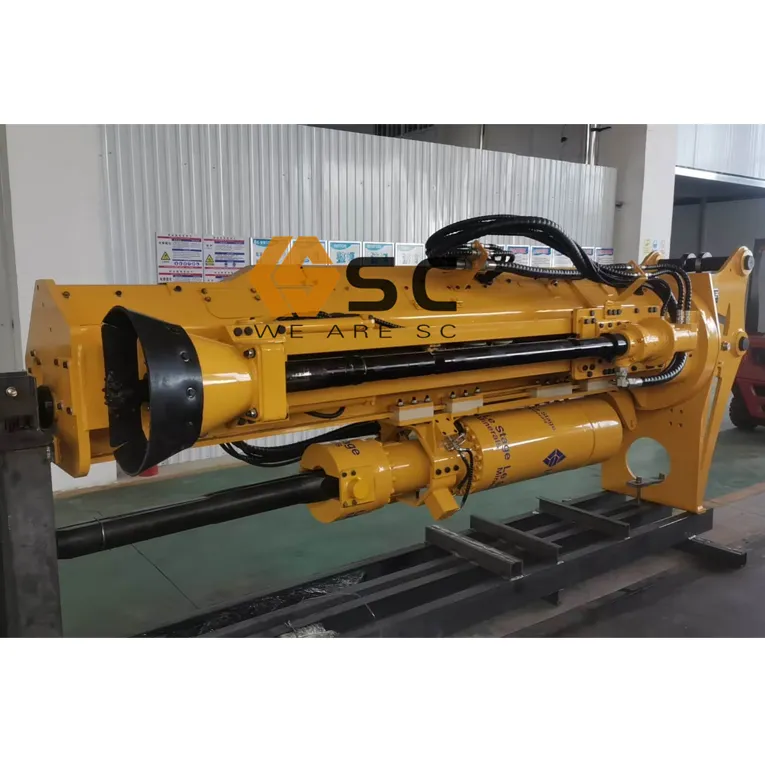

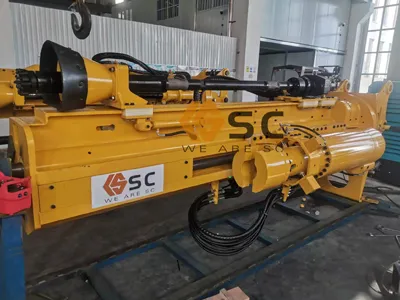

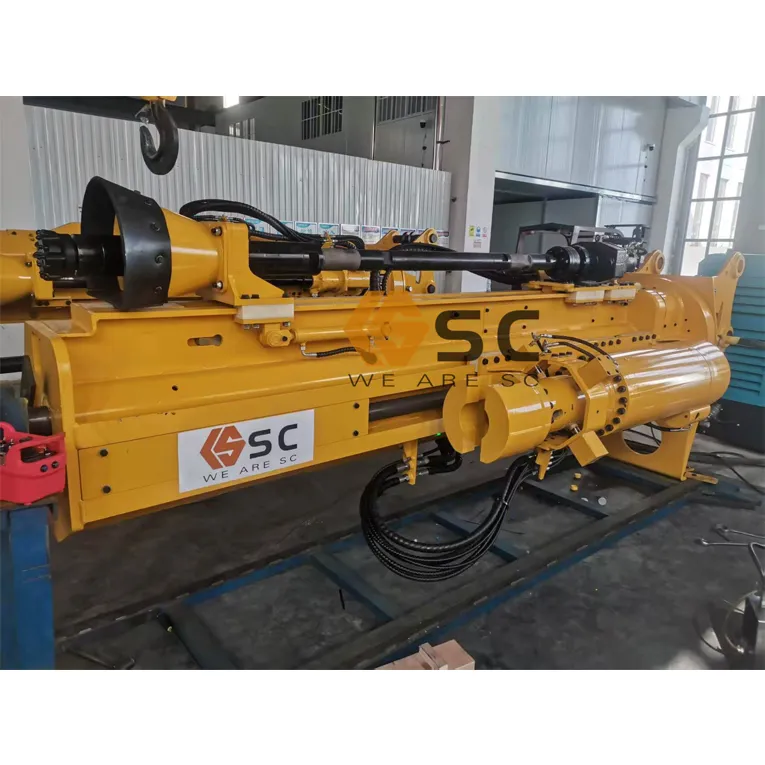

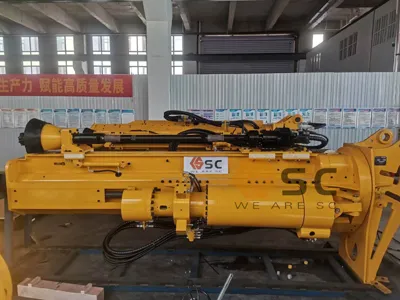

Rock Drill and Splitter

Name: Rock Drill and Splitter
Brand: YANTAI SC EQUIPMENT CO.,LTD.
Availability: InStock

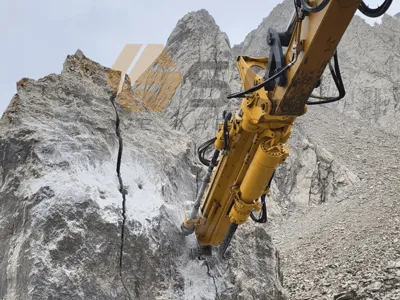

A rock drill and splitter is a powerful, non-explosive tool system designed for breaking and demolishing hard materials like rock and concrete.

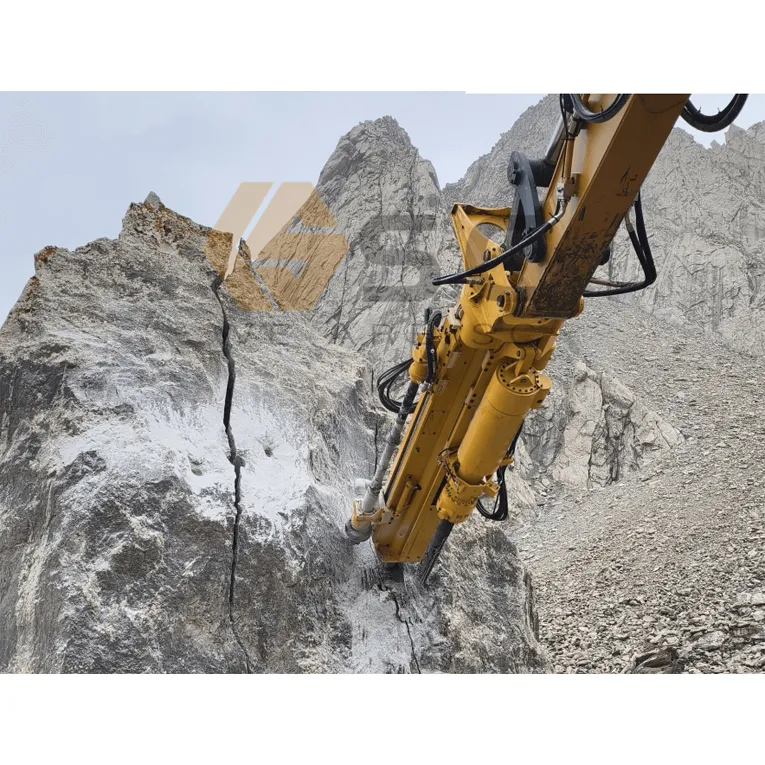

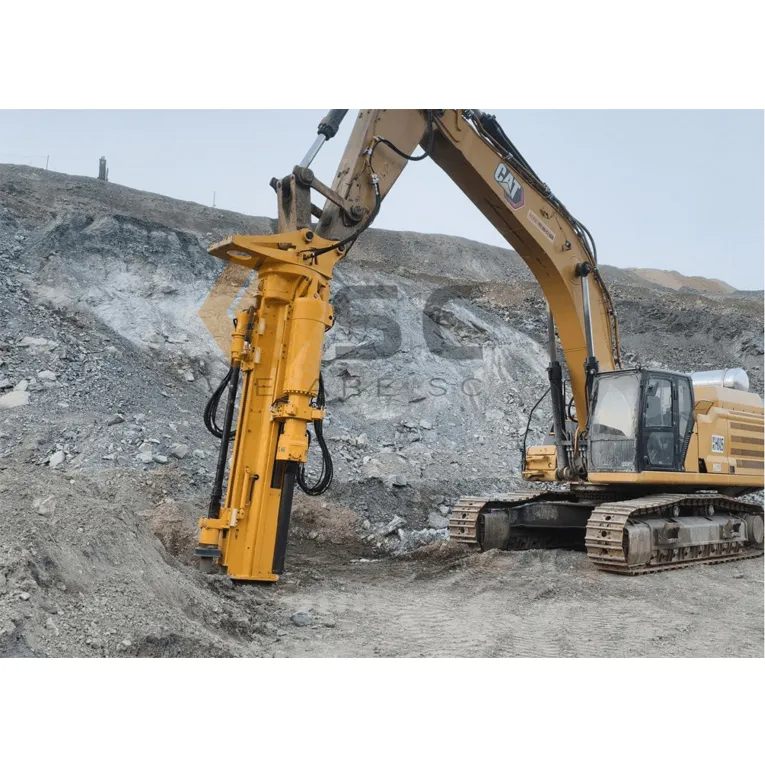

The system works in two main steps. First, the high-powered rock drill is used to create precise holes in the material. Then, the hydraulic splitter is inserted into these holes. It applies immense, controlled pressure from within, causing the rock or concrete to crack and split apart safely and quietly.

This method is ideal for construction, mining, and demolition projects where using explosives is too dangerous, disruptive, or prohibited. Key advantages of this system include its high efficiency, silent operation, and enhanced safety, making it a reliable and versatile solution for tough demolition tasks.

Inquiry



Features Specification Video

Features of Rock Drill and Splitter

Suitable for high-hardness rock conditions, and situations where hydraulic breakers and ordinary crushing equipment cannot break the rock.
By drilling and then splitting, it avoids the use of dangerous and destructive construction methods such as explosives, making it safe, efficient, and quiet.

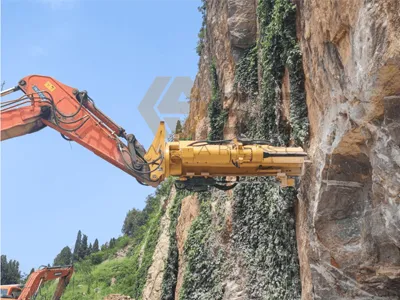

It can rotate 360 degrees and can operate vertically, tilted, or horizontally; it is not limited by terrain.
Equipped with a first-class brand ZHIJIAN diesel screw air compressor.
It has automatic dust removal to protect the environment.
It has DCH brand wireless remote control which is safe and fast.

Specification of Rock Drill and Splitter

Model	SC115D	SC135D	SC152D	SC200D
Suitable Machine (t)	20-30	20-30	30-38	40-50
HeightLengthWidth (mm)	420014001600	420014001600	440014001600	580016001800
Radius of Gyration (mm)	480	480	480	480
Total Weight(kg)	3500	3500	3800	5500
Drill Type	Top Hammer Drill Rig	Down-The-Hole (DTH) Drill Rig	Down-The-Hole (DTH) Drill Rig	Down-The-Hole (DTH) Drill Rig
Drilling Diameter (mm)	115	135	152	200+
Drilling Depth (m)	1.5	1.5	2	3
Average Drilling Speed (min/hole)	2	3	3.5	5
Rated Oil Flow (L/min)	250	270	400	500
Rated Pressure (MPa)	25	28	30	32
Air Compressor Displacement (m³/min)	4	15	18	25
Air Compressor Pressure (bar)	8	16	19	23
Splitter Cylinder Thrust (t)	281	281	281	336
Rated Splitting Force (t)	7800	8500	9500	20000
Splitting Block Length (mm)	900	1100	1400	2000
Crack Width (mm)	25	27	30	35
Automatic Hole Alignment Function	Ο	Ο	Ο	Ο
External Force Elimination Device	▶	▶	▶	▶
Automatic Brake Release	▶	▶	▶	▶
Dry Dust Removal	Ο	Ο	Ο	Ο
Wet Dust Suppression (Water Mist Dust Suppression)	▶	▶	▶	▶
Positioning Axis Height Adjustable	▶	▶	▶	▶
Splitting Block Anti-self-locking Design	▶	▶	▶	▶
Ο = Optional ▶ = Must-have Features
